P0222 – Throttle Position Sensor 2 Circuit Low

POSTED IN pcodes

Updated on:

Welcome to our article on the P0222 code, which indicates a low voltage in Circuit B of the Throttle Position Sensor 2. If you’ve encountered this check engine light code, it’s important to understand the potential issues it can cause with your vehicle’s throttle system. In this section, we will explore the symptoms, causes, diagnostic techniques, and potential fixes for this trouble code.

Key Takeaways:

  • The P0222 code indicates a low voltage in Circuit B of the Throttle Position Sensor 2.
  • Common symptoms include a check engine light, jerky acceleration, unresponsive throttle pedal, and poor starting behavior.
  • Possible causes include a malfunctioning throttle position sensor, throttle body failure, wiring harness damage, or a faulty ECU.
  • Diagnostic techniques involve using an OBD-II reader, conducting a visual inspection, testing the wiring harness, and checking the fuses and relays.
  • Potential fixes may include sensor replacement, throttle body cleaning, or further inspection of the ECU.

What Causes the Throttle Position Sensor 2 Circuit Low Voltage?

The P0222 code indicates a low voltage in Circuit B of the Throttle Position Sensor 2, which can be caused by various issues within the throttle system. Identifying the underlying causes is crucial to troubleshoot and resolve this problem effectively.

1. Malfunctioning Throttle Position Sensor: A faulty Throttle Position Sensor (TPS) is one of the primary culprits behind the P0222 code. The TPS is responsible for monitoring the position of the throttle plate and sending voltage signals to the Engine Control Unit (ECU). A malfunctioning TPS may not provide accurate voltage readings, resulting in a low voltage signal and triggering the P0222 code.

2. Throttle Body Failure: Another potential cause of the Throttle Position Sensor 2 Circuit Low Voltage is a malfunctioning throttle body. The throttle body houses the TPS and controls the air intake into the engine. If the throttle body fails to open or close properly, it can disrupt the voltage signal from the TPS, leading to a low voltage reading.

3. Wiring Harness Damage: Damage to the wiring harness that connects the TPS to the ECU can also contribute to the P0222 code. Corroded or loose wiring, frayed insulation, or broken wires can interrupt the voltage signal from the TPS, resulting in a low voltage reading. Inspecting the wiring harness for any signs of damage is essential during the diagnostic process.

4. Faulty ECU: In rare cases, a faulty ECU can be responsible for the Throttle Position Sensor 2 Circuit Low Voltage. If the ECU fails to receive or interpret the voltage signals from the TPS correctly, it may generate the P0222 code. However, ECU failure is less common compared to other causes and should be considered after ruling out other possibilities.

To gain a better understanding of the specific cause, a comprehensive diagnosis is necessary using appropriate diagnostic tools and techniques.

Throttle Position Sensor

Complications Due to Throttle Position Sensor Issues

If left unresolved, throttle position sensor issues can lead to various complications in your vehicle’s performance. These complications may include:

  • Poor throttle response
  • Inconsistent acceleration
  • Difficulty starting the engine
  • Inefficient fuel consumption
  • Engine stalling

Proper diagnosis and timely resolution of the Throttle Position Sensor 2 Circuit Low Voltage are crucial to restore your vehicle’s optimal performance.

Symptoms of the Throttle Position Sensor 2 Circuit Low Voltage

If your vehicle is displaying the P0222 code, it’s important to be aware of the symptoms associated with a throttle position sensor 2 circuit low voltage. These symptoms primarily affect the performance of your vehicle and should not be ignored. Common indicators of this issue include:

  • Check engine light: The check engine light may illuminate on your dashboard, indicating a problem with the throttle position sensor 2 circuit.
  • Jerky acceleration: You may experience uneven or jerky acceleration when pressing the gas pedal, which can make driving uncomfortable and potentially dangerous.
  • Unresponsive throttle pedal: The throttle pedal may feel unresponsive or require increased pressure to achieve the desired acceleration.
  • Poor starting behavior: Your vehicle may have difficulty starting or require multiple attempts before it starts properly.

Experiencing any of these symptoms is a clear indication that there may be an issue with the throttle position sensor 2 circuit voltage. It’s important to address the problem promptly to prevent further damage and ensure the optimal performance of your vehicle.

How to Diagnose the Throttle Position Sensor 2 Circuit Low Voltage

Diagnosing the P0222 code involves a series of tests and inspections to identify the root cause of the low voltage issue. Here are the steps to follow:

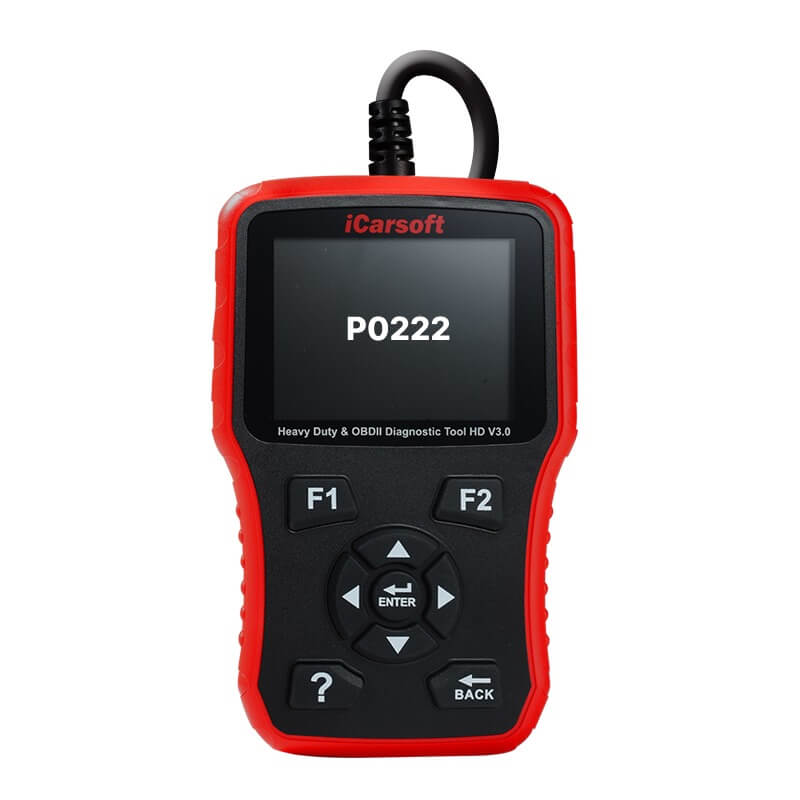

1. Use an OBD-II Reader

Begin by connecting an OBD-II reader to your vehicle’s diagnostic port. This tool will retrieve the trouble code and provide live data readings from various sensors, including the throttle position sensor. Look for any abnormal readings that indicate a low voltage in Circuit B of the throttle position sensor.

2. Perform a Visual Inspection

Next, visually inspect the throttle position sensor and throttle body for any signs of damage or wear. Look for loose connections, broken wires, or corrosion that could be causing a disruption in the circuit. Here’s an image of what the throttle position sensor and throttle body look like:

3. Test the Wiring Harness

Using a multimeter, test the wiring harness connected to the throttle position sensor. Check for continuity in the wires and ensure there are no shorts or open circuits. If any faults are found, repair or replace the wiring harness as necessary.

4. Inspect Fuses and Relays

Lastly, inspect the fuses and relays associated with the throttle system. A blown fuse or faulty relay can cause a disruption in voltage supply to the throttle position sensor, resulting in the P0222 code. Use a test light or multimeter to check for continuity and proper functionality.

By following these diagnostic procedures, you can accurately identify the cause of the low voltage issue in the throttle position sensor circuit. This will help you determine the necessary repairs or replacements to restore optimal performance in your vehicle.

Now that you have diagnosed the issue, let’s move on to Section 5: How to Fix the Throttle Position Sensor 2 Circuit Low Voltage.

How to Fix the Throttle Position Sensor 2 Circuit Low Voltage

If your vehicle is experiencing the P0222 code indicating a low voltage in Circuit B of the Throttle Position Sensor 2, there are several steps you can take to resolve the issue and ensure proper functioning of the throttle system.

Sensor Replacement

If the throttle position sensor (TPS) has failed, it will likely need to be replaced. The TPS is responsible for measuring the position of the throttle, and a faulty sensor can result in low voltage readings. Consult your vehicle’s service manual or a professional mechanic to ensure you choose the correct replacement sensor for your specific make and model.

Throttle Body Cleaning

In some cases, carbon buildup on the throttle body can affect the sensor’s performance and lead to low voltage readings. Cleaning the throttle body can help remove any accumulated carbon deposits and improve the sensor’s accuracy. Use a throttle body cleaner and follow the instructions provided in your vehicle’s service manual or consult a professional mechanic for guidance.

ECU Check

If the issue persists after replacing the sensor and cleaning the throttle body, it’s important to inspect the Electronic Control Unit (ECU) for any faults or malfunctions. The ECU is responsible for controlling various components of the throttle system and can impact the voltage readings received by the sensor. A diagnostic scan tool can help identify any ECU-related issues, and further inspection or replacement may be necessary.

By addressing the root cause of the problem through sensor replacement, throttle body cleaning, or ECU check, you can effectively fix the Throttle Position Sensor 2 Circuit Low Voltage issue and ensure optimal performance of your vehicle. Taking these steps will help clear the P0222 code and restore the proper functioning of your throttle system.

Throttle Position Sensor Replacement Image

Common Misdiagnoses and Tips for Preventing Throttle Position Sensor Issues

When dealing with the P0222 code, it’s crucial to avoid common misdiagnoses that could lead to unnecessary repairs or replacements. One such misdiagnosis is automatically assuming that the throttle position sensor is the culprit without considering other potential causes.

Poor connections can often be the root cause of a low voltage in the throttle position sensor circuit. Before replacing any parts, thoroughly inspect all connections and wiring harnesses associated with the throttle system. Look for loose or damaged wires, corrosion, or other signs of poor connection quality.

Another overlooked issue that can mimic a faulty throttle position sensor is a dirty throttle body. Over time, carbon buildup can accumulate on the throttle body, affecting its performance and causing erratic readings from the sensor. Regular maintenance, such as cleaning the throttle body, can help prevent these issues from occurring.

Tip: Before replacing the throttle position sensor, ensure that all connections are secure and free from damage. Additionally, consider cleaning the throttle body to eliminate carbon buildup and restore optimal sensor performance.

By taking these precautions and avoiding hasty misdiagnoses, you can save time and money on unnecessary repairs. Thoroughly inspecting connections and regularly maintaining the throttle body will help ensure the proper function of the throttle position sensor, preventing issues that could trigger the P0222 code.

Common Misdiagnoses and Prevention Tips

Misdiagnosis Prevention Tip
Replacing throttle position sensor without checking connections Thoroughly inspect all connections and wiring harnesses before replacing parts
Overlooking dirty throttle body as a potential cause Regularly clean the throttle body to prevent carbon buildup

Conclusion

In conclusion, the P0222 code points to a low voltage issue in Circuit B of the Throttle Position Sensor 2, which can significantly impact your vehicle’s performance. By familiarizing yourself with the symptoms, causes, and diagnostic techniques associated with this code, you can effectively troubleshoot and rectify the problem. However, if you feel unsure or require assistance in resolving the P0222 code, it is always advisable to consult a professional to ensure the optimal functioning of your vehicle.

Understanding the significance of the throttle position sensor and its impact on your vehicle’s performance is crucial. By identifying the symptoms, such as a check engine light, jerky acceleration, an unresponsive throttle pedal, and poor starting behavior, you can take appropriate action to address the issue promptly.

Diagnostic techniques, including using an OBD-II reader to retrieve the trouble code and live data, visual inspections to check for external damage, and testing the wiring harness and associated fuses and relays, are essential in pinpointing the root cause of the low voltage problem. Once identified, appropriate fixes such as sensor replacement, throttle body cleaning to remove carbon buildup, or ECU checks may be required to rectify the issue.

Remember, the P0222 code should not be ignored, as it can impact your vehicle’s performance and potentially lead to more severe problems. By staying informed and addressing the issue promptly, you can maintain the optimal functioning of your vehicle and ensure a smooth driving experience.

FAQ

What causes the Throttle Position Sensor 2 Circuit Low Voltage?

The main causes of the P0222 code include a malfunctioning throttle position sensor, throttle body failure, damage to the wiring harness, or a faulty ECU.

What are the symptoms of the Throttle Position Sensor 2 Circuit Low Voltage?

Symptoms of the P0222 code can include a check engine light, jerky acceleration, an unresponsive throttle pedal, and poor starting behavior.

How do you diagnose the Throttle Position Sensor 2 Circuit Low Voltage?

Diagnostic techniques for the P0222 code involve using an OBD-II reader, performing a visual inspection, testing the wiring harness, and inspecting the fuses and relays associated with the throttle system.

How do you fix the Throttle Position Sensor 2 Circuit Low Voltage?

Fixes for the P0222 code may involve replacing the throttle position sensor, cleaning the throttle body, or checking the ECU for issues.

What are common misdiagnoses and tips for preventing Throttle Position Sensor issues?

Common misdiagnoses include replacing the throttle position sensor when the issue lies in poor connections or a dirty throttle body. Regular maintenance, such as cleaning the throttle body, can help prevent throttle position sensor issues.

How does the Throttle Position Sensor 2 Circuit Low Voltage affect vehicle performance and diagnostics?

The P0222 code indicates a low voltage in Circuit B of the Throttle Position Sensor 2, which can affect the performance of your vehicle. By understanding the symptoms, causes, and diagnostic techniques associated with this code, you can effectively troubleshoot and fix the issue.
